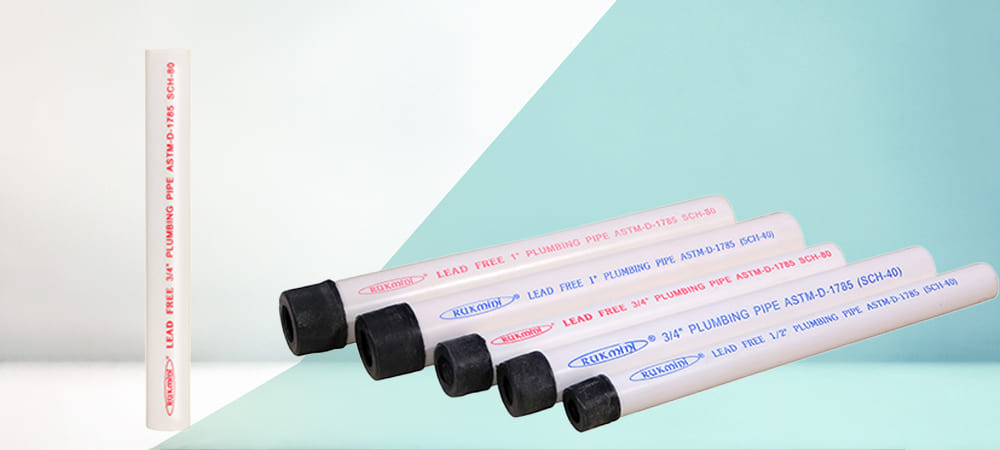

Rukmini Plumbing Pipes are made as per worldwide acceptable American Standard, ASTM D1785/89 with its latest amendments under strict quality control system. Proven and renowned for their strength and durability, the exclusive range of Plumbing Pipes is highly resistant to corrosion and abrasion.
These Pipes are threaded to match with GI Pipes & Fittings conforming to IS 1239 (Part-i). Further, these pipes can be availed in different specifications as per the client’s requirement.
Rukmini Plumbing pipes are non-toxic, making it suitable for drinking water. It prevents adverse health effects.
Rukmini Plumbing pipes are cost-efficient due to their ease of installation and the best market price.
Such pipes can be allocated to support the transfer of sensitive material due to its antibacterial surface.
Smooth surface keeps frictional looses to minimal.
Extra strong, long life, low maintenance, and replacement cost.
The durability of the pipes makes the utility all the most cost efficient.
Non-corrosive; no complaint of fungus and rust.
| Nominal Bore | Outside Diameter | Wall Thickness | Wall Thickness | Wall Thickness | |||
| Schedule 40 | Schedule 80 | Schedule 120 | |||||
| Min | Max | Min | Max | Min | Max | ||
| (In) | mm | mm | mm | mm | mm | mm | mm |
| ⅟₂ | 21.34 ± 0.10 | 2.77 | 3.28 | 3.73 | 4.24 | 4.32 | 4.83 |
| ¾ | 26.67 ± 0.10 | 2.87 | 3.38 | 3.91 | 4.42 | 4.32 | 4.83 |
| 1 | 33.40 ± 0.13 | 3.38 | 3.89 | 4.55 | 5.08 | 5.08 | 5.69 |
| 1⅟₄ | 42.16 ± 0.13 | 3.56 | 4.07 | 4.85 | 5.43 | 5.46 | 6.12 |
| 1⅟₂ | 48.26 ± 0.15 | 3.68 | 4.19 | 5.08 | 5.69 | 5.72 | 6.4 |
| 2 | 60.32 ± 0.15 | 3.91 | 4.42 | 5.54 | 6.20 | 6.35 | 7.11 |
| 2⅟₂ | 73.02 ± 0.18 | 5.16 | 5.77 | 7.01 | 7.85 | 7.62 | 8.53 |
| 3 | 88.90 ± 0.20 | 5.49 | 6.15 | 7.62 | 8.53 | 8.89 | 9.96 |
| 4 | 114.30 ± 0.23 | 6.02 | 6.73 | 8.56 | 9.58 | 11.10 | 12.42 |
