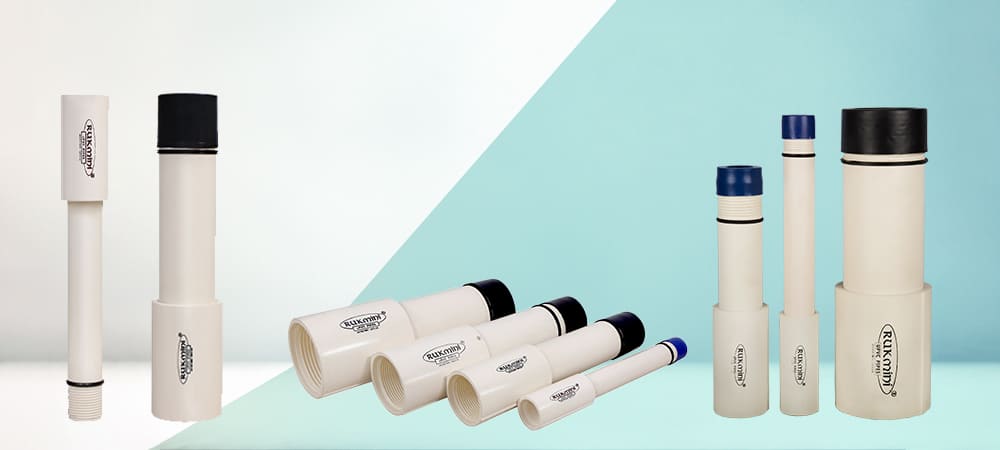

Column Pipes

Description

Rukmini Column Pipes are designed for submersible pumps . The pipes are manufactured in the range of 1’’ to 4’’ diameters, with wall thicknesses as the per IS standard .The Pipes are available in white Colour and supplied in the nominal length of 3.0 meters.

SALIENT FEATURES

  • Economical:

    Rukmini plumbing pipes are are cost efficient due to their smoothness and easy installation.

  • Maintenance Free Threading system:

    Our Column pipes are made in a way that the threading system last for a long time without any maintenance requirement.

  • Smooth surface:

    Efficient pumping due to smooth surface resulting in energy savings.

  • Durable:

    Extra strong, longer life, low maintenance and replacement cost.

  • High load bearing strength:

    Along with the durability and a strong threading system, these pipes are also able to take on heavy instantaneous or prolonged pressures.

Enquiry Now

We don’t ecourage spam, and we respect your privacy

uPVC Column Pipe Load & Pressure Technical Chart
Sizes & Types Ultimate Breaking Load (in Kgs) Safe Pulling Load With Chain Pully (in Kgs) Safe Allowable Hydro Static Pressure (KG/CM²)
OD:33mm, NB:25 mm (1'')
LIGHT 1000 700 15
MEDIUM 1700 1000 21
STANDARD 1800 1300 30
OD:42mm, NB:32 mm (1¼")
LIGHT 1500 1000 15
MEDIUM 1900 1100 21
STANDARD 2600 1500 25
HEAVY 3100 1550 35
OD:48mm, NB:40 mm (1½")
LIGHT 2000 1200 15
MEDIUM 2500 1400 21
STANDARD 3000 1700 26
HEAVY 4000 2000 35
OD:60mm, NB:50 mm (2")
LIGHT 2500 1300 11
MEDIUM 2800 1500 13
STANDARD 3800 2100 20
HEAVY 4700 2850 27
SUPER HEAVY 5600 3500 35
OD:75mm, NB:65 mm (2½")
MEDIUM 3500 1900 10
STANDARD 5000 2700 16
HEAVY 7000 4200 26
SUPER HEAVY 8800 4900 35
SUPER HEAVY PLUS 10000 5600 40
OD:88mm, NB:80 mm (3")
MEDIUM 5000 2750 11
STANDARD 7000 4000 17
HEAVY 9500 5700 26
SUPER HEAVY 12100 6800 35
OD:113mm, NB:100 mm (4")
MEDIUM 7500 4100 10
STANDARD 10300 5700 15
HEAVY 16000 9500 26
SUPER HEAVY 20100 11300 35
